Terrace
Adjustadjust.terraceCut the terrain into steps: flat benches with steeper risers between them.

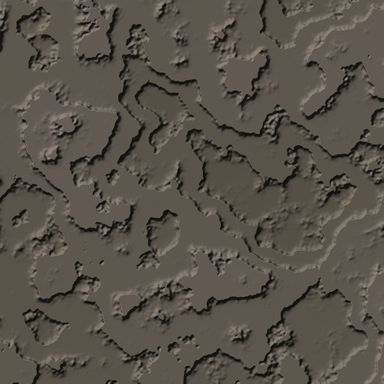

Output with default settings, rendered by LibreTerrain.
Inputs
| Port | Type | |
|---|---|---|
| In | Heightfield |
Outputs
| Port | Type | |
|---|---|---|
| Out | Heightfield |
Settings
| Setting | Default | Range / options | Description |
|---|---|---|---|
| Step height | 120 m | 0.1 to 10,000 m | Height of each step, in metres. |
| Sharpness | 0.7 | 0 to 1 | 0 = gentle undulation, 1 = flat benches with near-vertical risers. |
| Offset | 0 m | -10,000 to 10,000 m | Shift the steps up or down, in metres. |
| Strength Mask port | 1 | 0 to 1 | How much of the effect to apply. 0 = input unchanged. |
Mask ports
Settings marked Mask port can be driven by a mask. Click the setting's Mask port button and connect a mask to the new green input: black scales the value to 0, white keeps the value you set.
