Transform

Adjust adjust.transform GPU

Move, rotate and scale the terrain around the centre of the world. Areas brought in from outside repeat the edge.

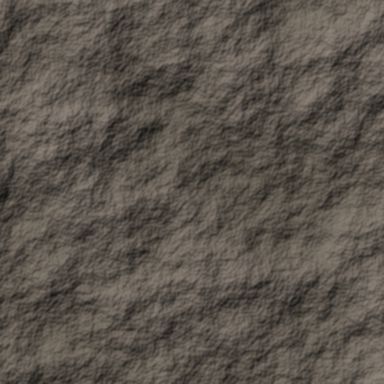

Output with default settings, rendered by LibreTerrain.

Inputs

Port	Type
In	Heightfield

Outputs

Port	Type
Out	Heightfield

Settings

Setting	Default	Range / options	Description
Move X	0 m	-1,000,000 to 1,000,000 m
Move Y	0 m	-1,000,000 to 1,000,000 m
Rotation	0 °	-360 to 360 °	Clockwise in the 2D view.
Scale	1	0.01 to 100	2 = features twice as large.
Height scale	1	-10 to 10	Multiply heights (around the world's lowest height).
