Slope

Data data.slope GPU

White where the ground is as steep as Min to Max degrees (0° = flat, 90° = vertical).

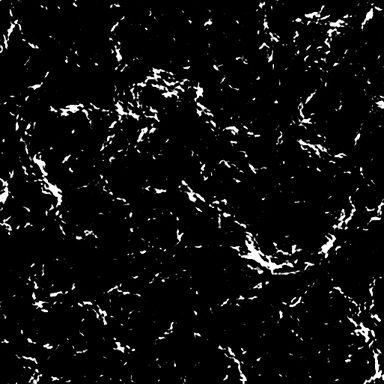

Output with default settings, rendered by LibreTerrain.

Inputs

Port	Type
In	Heightfield

Outputs

Port	Type
Out	Mask

Settings

Setting	Default	Range / options	Description
Min angle	30 °	0 to 90 °
Max angle	90 °	0 to 90 °
Falloff	5 °	0 to 45 °	Angle over which the mask fades out.
Invert	Off		Swap black and white.
