Rock Hardness
Datadata.rock_hardnessAlternating soft and hard horizontal beds. Connect to an erosion node's Rock hardness input.

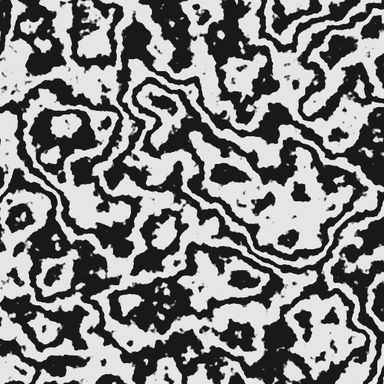

Output with default settings, rendered by LibreTerrain.
Inputs
| Port | Type | |
|---|---|---|
| Terrain | Heightfield |
Outputs
| Port | Type | |
|---|---|---|
| Hardness | Mask |
Settings
| Setting | Default | Range / options | Description |
|---|---|---|---|
| Layer thickness | 50 m | 0.01 to 10,000 m | Thickness of each soft or hard bed; one repeat contains two beds. |
| Vertical offset | 0 m | -20,000 to 20,000 m | |
| Soft bed hardness | 0.1 | 0 to 1 | |
| Hard bed hardness | 0.9 | 0 to 1 |
